    Product Details:

    Place of Origin: China
    Brand Name: Shitai
    Certification: ISO9001:2008
    Model Number: STNB07

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: 20$-60$/square meters
    Packaging Details: packed in pallet with plastic film
    Delivery Time: 7-15 days
    Payment Terms: TT, LC
    Supply Ability: 8000 square meters/day
    Contact Now
    Detailed Product Description
    Material: PC Acrylic Board, Plastic Panle, Steel Sheet Or Aluminium Sheet Inner Material: Glass Wool
    Sheets Thickness: 0.8-1mm, Can Be Customized Panel Size: Width 0.5m Or 1m, Length 2mm. Customized Size Available

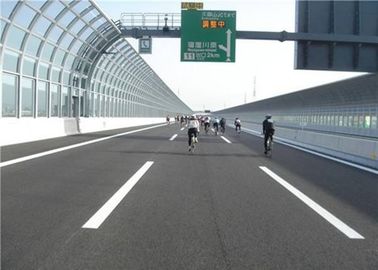

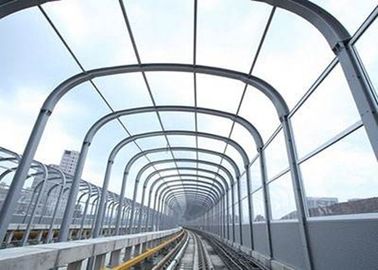

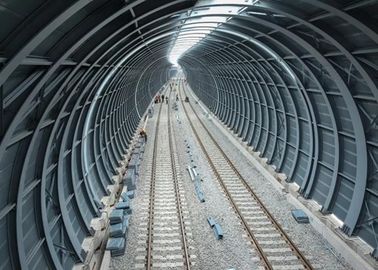

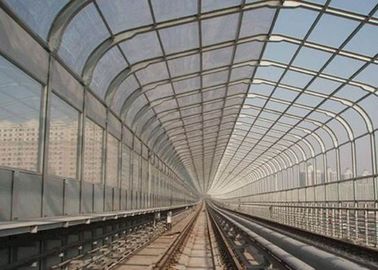

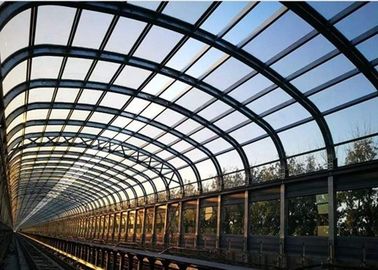

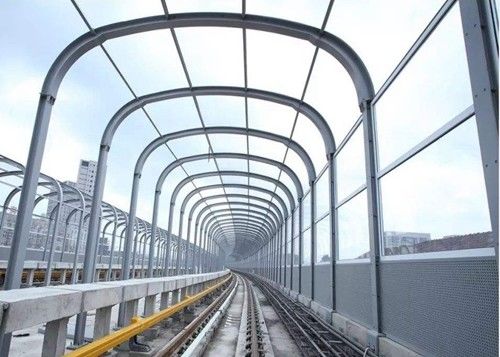

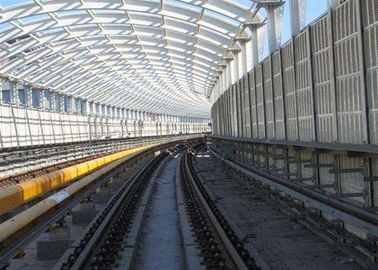

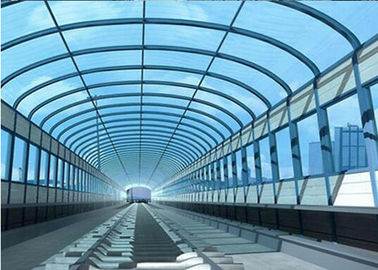

    Enclosure noise barrier can achieve better sound insulation effect, and the noise reduction effect is obviously improved than unilateral or bilateral sound barrier. It can basically solve the noise impact of residential areas from urban expressway and viaduct road.



    Enclosure noise barrier effectively blocked the re-propagation of noise, but also because of its height and special materials to effectively ensure the safety of our driving environment. This design and installation not only meets the needs of noise insulation and noise reduction, but also adds a double guarantee to traffic safety.



    Enclosure noise barrier
    1. Large amount of sound insulation: the average sound insulation should be no less than 35dB;

    2. High sound absorption coefficient: the average sound absorption coefficient should be not less than 0.84;

    3. The sound barrier durability of the community sound barrier: the product should have water resistance, heat resistance and resistance. Ultraviolet rays do not cause deterioration in performance or quality due to changes in rain temperature. The product adopts aluminum alloy coil plate, galvanized coil plate, glass wool, and H steel column surface for galvanizing. The corrosion protection period is more than 15 years.

    4. Aesthetic: You can choose a variety of colors and shapes to combine and coordinate with the surrounding environment to form a beautiful landscape.

    5. Economy: Assembly-type construction, improve work efficiency, shorten construction time, and save construction and labor costs.

    6. Convenient: It is installed in parallel with other products, easy to maintain and easy to update.

    7. overall curved sound barrier. Lightweight: The sound barrier series products have the characteristics of self-weight and light weight, which can reduce the load-bearing load of overhead light rail and elevated road, and reduce the structural cost.



    Main materials and specifications
    Parts List Items Product description
    Noise barrier Panel Metal Material Galvanized sheet, aluminum alloy sheet, color plate
    Transparent material glass, PC board, acrylic board, etc
    Other materials High strength cement, cement wood chips, glass steel, etc
    hole pattern Louver holes: common hole spacing 20*137, 20*182
    Micropores: common 3 holes 3 distances,5 holes 2 distances,2 holes 4 distances
    aperture ratio Not less than 25%
    Common size 500*2000*80(100)mm,500*2000*120mm,1000*2000*80(100)mm etc
    Surface concave groove can be customized according to drawings or customer requirements
    Surface treatment Electrostatic powder coating, fluorocarbon spraying
    colour Green 6029, blue 5017, gray 7042, white 9010, etc., color can be selected
    according to the national standard color card
    H shape post Material Q235B
    Common size 100*100*6*8,125*125*6.5*9,150*150*7*10,175*175*7.5*11 etc
    Common height 2m-6m, up to 12m
    Flange Size tolerance less than 2mm, thickness tolerance less than 0.4mm
    Long hole: 22*30, 24*30, 26*40, 28*40; round hole: 22, 24, 26, 28, 30, 35
    Surface treatment Hot dip galvanizing - electrostatic powder coating, fluorocarbon spraying
    colour Green 6029, blue 5017, gray 7042, white 9010, etc., color can be selected
    according to the national standard color card
    Noise absorb material Glass wool, rock wool, water-repellent cloth, acoustic felt, foam aluminum, aluminum fiber, etc.
