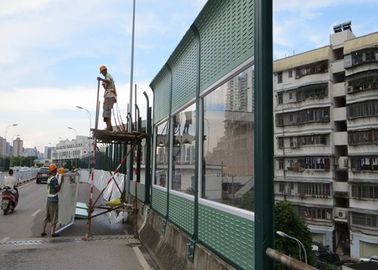

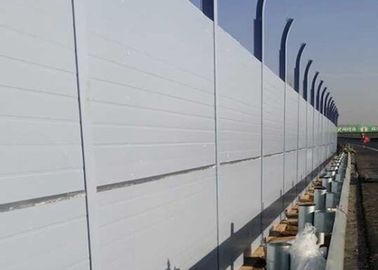

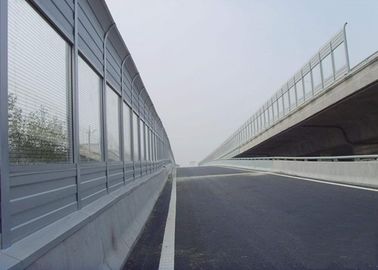

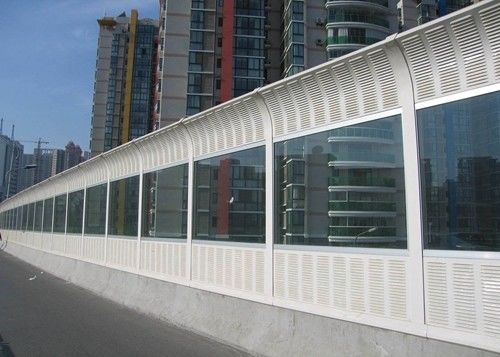

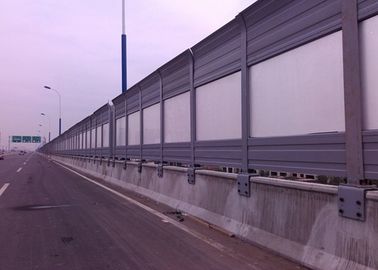

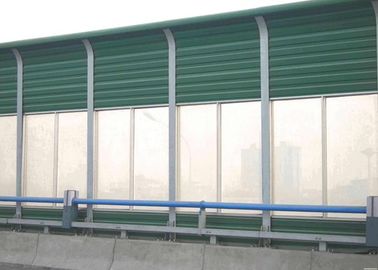

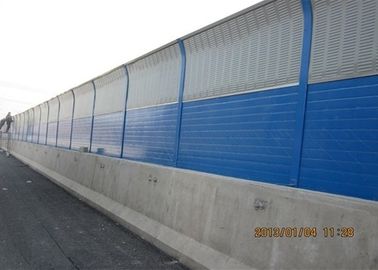

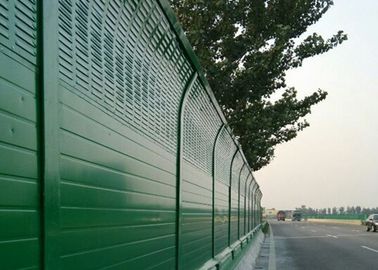

Vertical arc noise barrier

Vertical arc noise barrier

    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
    • Vertical arc noise barrier
  • Vertical arc noise barrier

    Product Details:

    Place of Origin: China
    Brand Name: Shitai
    Certification: ISO9001:2008
    Model Number: STNB06

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: 20$-60$/square meters
    Packaging Details: packed in pallet with plastic film
    Delivery Time: 7-15 days
    Payment Terms: TT, LC
    Supply Ability: 8000 square meters/day
    Contact Now
    Detailed Product Description
    Material: PC Acrylic Board, Plastic Panle, Steel Sheet Or Aluminium Sheet Inner Material: Glass Wool
    Sheets Thickness: 0.8-1mm, Can Be Customized Panel Size: Width 0.5m Or 1m, Length 2mm. Customized Size Available


    Vertical arc noise barrier can be divided into small enclosupe sound barrier and large enclosupe sound barrier. It combines the characteristics of vertical sound barrier and angle sound barrier. It not only has strong wind resistance, simple installation, beautiful appearance, but also has good noise reduction effect, and is suitable for various occasions and various heights of sound barrier.



    Main materials and specifications
    Parts List Items Product description
    Noise barrier Panel Metal Material Galvanized sheet, aluminum alloy sheet, color plate
    Transparent material glass, PC board, acrylic board, etc
    Other materials High strength cement, cement wood chips, glass steel, etc
    hole pattern Louver holes: common hole spacing 20*137, 20*182
    Micropores: common 3 holes 3 distances,5 holes 2 distances,2 holes 4 distances
    aperture ratio Not less than 25%
    Common size 500*2000*80(100)mm,500*2000*120mm,1000*2000*80(100)mm etc
    Surface concave groove can be customized according to drawings or customer requirements
    Surface treatment Electrostatic powder coating, fluorocarbon spraying
    colour Green 6029, blue 5017, gray 7042, white 9010, etc., color can be selected
    according to the national standard color card
    H shape post Material Q235B
    Common size 100*100*6*8,125*125*6.5*9,150*150*7*10,175*175*7.5*11 etc
    Common height 2m-6m, up to 12m
    Flange Size tolerance less than 2mm, thickness tolerance less than 0.4mm
    Long hole: 22*30, 24*30, 26*40, 28*40; round hole: 22, 24, 26, 28, 30, 35
    Surface treatment Hot dip galvanizing - electrostatic powder coating, fluorocarbon spraying
    colour Green 6029, blue 5017, gray 7042, white 9010, etc., color can be selected
    according to the national standard color card
    Noise absorb material Glass wool, rock wool, water-repellent cloth, acoustic felt, foam aluminum, aluminum fiber, etc.

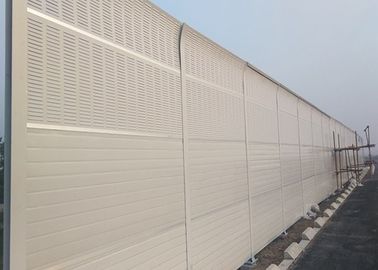

      Vertical arc noise barrier



    Vertical arc noise barrier
