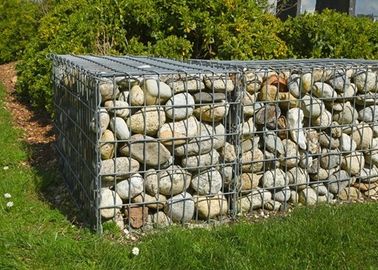

Welded gabion basket

Welded gabion basket

    • Welded gabion basket
    • Welded gabion basket
    • Welded gabion basket
    • Welded gabion basket
    • Welded gabion basket
    • Welded gabion basket
    • Welded gabion basket
    • Welded gabion basket
    • Welded gabion basket
  • Welded gabion basket

    Product Details:

    Place of Origin: China
    Brand Name: Shitai
    Certification: ISO9001
    Model Number: ST01

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 sets
    Price: USD20-30/set for quantity of 50-100 set
    Packaging Details: packing with pallets ,2m*1m*1m or 1m*1m*1m
    Delivery Time: 7-10 days
    Payment Terms: TT or LC
    Supply Ability: 1000 sets per week
    Contact Now
    Detailed Product Description
    Product Name: Welded Gabion Basket Material: Heavy Duty Galvanized Wire Diameter From 3.0mm To 6.0mm
    (galfan Coated Wire Available)
    Gabion Mesh Wire: 100 X 50 Mm,75mm X 75mm, 50 X 50mm,
    100 X 100mm And 3' X 3'
    Gabion Box Size: 2.0 X 1.0 X 1.0m, 2.0 X 1.0 X 0.5m, 2.0 X 0.5 X 0.5m, 2.0 X 0.3 X 0.3m,
    1.0 X 1.0 X 1.0m, 1.0 X 1.0 X 0.5m, 1.0 X 0.5 X 0.5m, 0.5 X 0.5 X 0.5m,
    1.2 X 0.6 X 0.6m Required Size Available
    Gabion Box PVC  color: Dark Green, Gray ,black , Etc.

    Product Description:
    Welded gabion box are made of welded wire mesh that are connected by spring. Ability to resist natural damage, corrosion and bad weather. It is widely used in river management,slope protection etc. It has long service life.


    Normal welded gabion box specifications:

    L x W x D (cm) Diaphragms Capacity (m3) Mesh size (mm) Standard wire dia. (mm)
    100x30x30 0 0.09

    50 x 50

    75 x 75

    100 x 50

    100 x100

    200 x 50


    Heavily Galvanized zinc coated wire 3.5-6.0


    Galfan coated wire 3.5-6.0

    100x50x30 0 0.15
    100x100x50 0 0.5
    100x100x100 0 1
    150x100x50 1 0.75
    150x100x100 1 1.5
    200x100x50 1 1
    200x100x100 1 2


    The welded gabion basket details :
    A)panel :high quality galvanized panel of 50*50mm, 75*75mm , 50*100mm and 100*100mm size

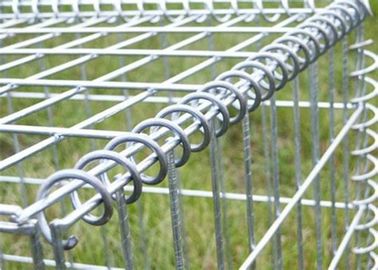

    B)sprial wires ;good quality for same wire diameter as panel
    C)stifferens :4-8 stifferens per gabion ;
    to make sure the gabion is more strong


    Welded gabion basket


     Welded gabion basket


    Our welded gabion box Advantages:
    1.Welded wire mesh gabion has even flat surface,firm welding point,anti-rust and longer-service life
    2.Lowest gabion stone baskets cost,easy assembled
    3.Great ability of resist natural damage and bad whether
    4.High tensile strength
    5.welded gabion box is easy to be installed at site,save time,save work,high work efficiency.
    6.Compared to hexagonal gabion box,welded gabion installation 40% work time saved,and it can keep its shape,when filled with stones gabion will not be budged out.

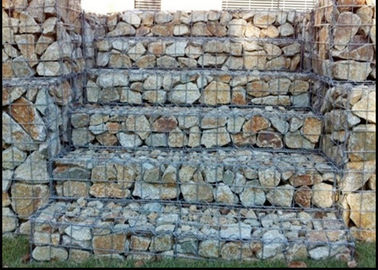

    Welded Gabion basket" Applications:

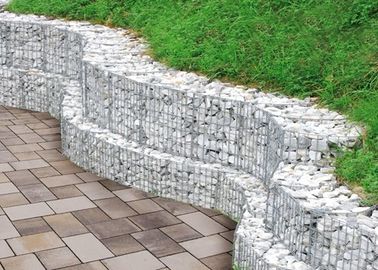

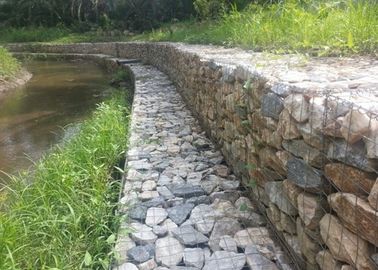

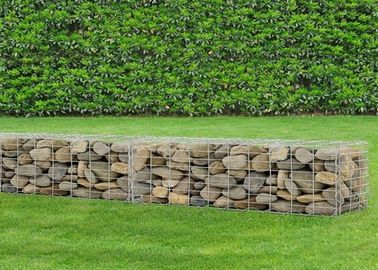

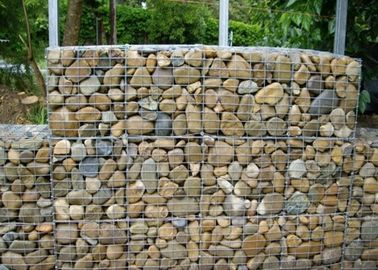

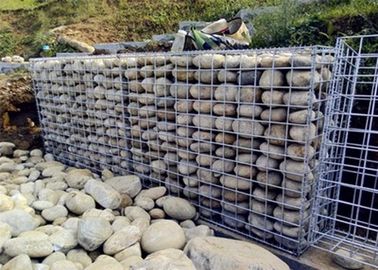

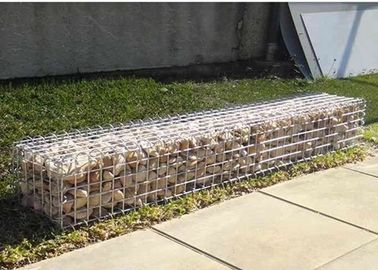

    Gabions allow multiple applications, such as installing a fence, separation wall with artificial stone, or even the creation of tables and chairs. Welded Gabion box also widely used in retaining walls for commercial, industrial and road project, landscaping, erosion control etc. Welded gabions are filled on site with hard and durable stone to form mass gravity structures.


    Welded gabion basket


    How to install welded gabion box?
    1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
    2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
    3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
    4. Gabion box filled with graded stone by hand or with a shovel.
    5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
    6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up


    Package & Shipment
    1. pallet or in bundle

    2. packed with waterproof paper and then wrap plastic film

    3. as your requests
