|Place of Origin:||CHINA|
|Minimum Order Quantity:||50 pieces|
|Packaging Details:||1. compacted before packaging. 2. Plastic packaging outside and on the pallet. or according to the customers' requirment|
|Delivery Time:||7-15 days ready to ship|
|Payment Terms:||LC TT|
|Supply Ability:||5000 pieces/day|
|Product Name:||Sack Gabion||Material:||Galvanized Wire ,galfan Wire And PVC Coated Wire|
|Gabion Mesh Wire:||2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm||Gabion Selvedge Wire:||2.4mm,2.7mm,3mm,3.4mm,4mm|
|Gabion Lacing Wire:||Normally 2.2mm Or As Requested||Gabion Box Mesh Hole:||6*8cm,8*10cm,10*12cm,12*15cm|
|Gabion Box Zinc Coating:||250-300/m2||Gabion Box PVC Color:||Darkgree, Gray ,black , Etc|

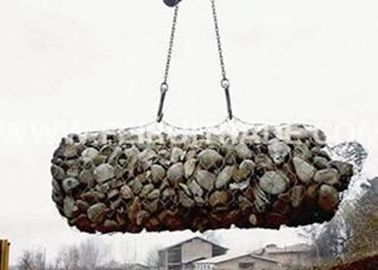

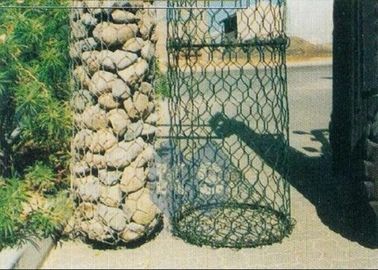

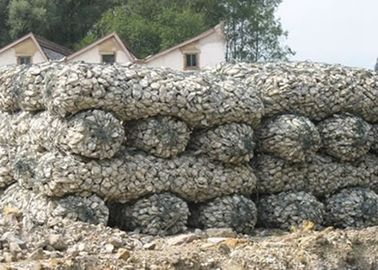

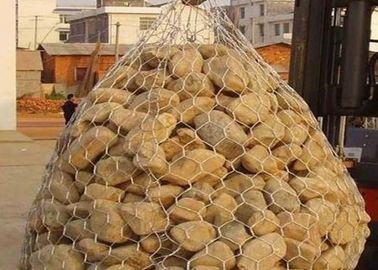

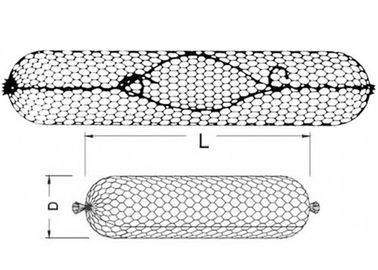

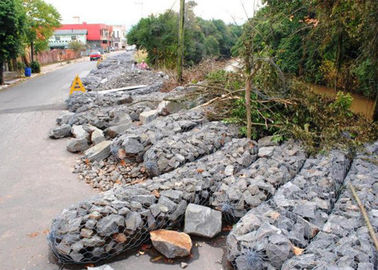

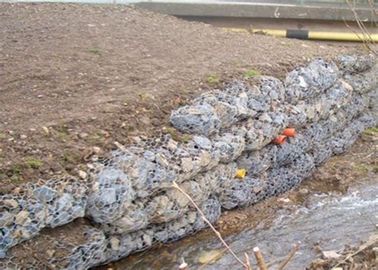

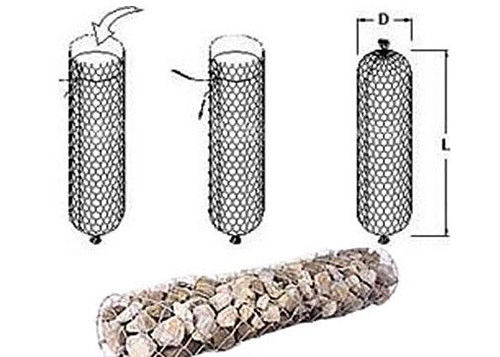

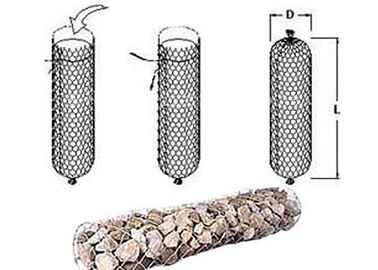

Sack Gabion is a cylindrical bag woven from double twisted hexagonal mesh. It conforms to ASTM A975-97 standard. During construction process, the mesh bag is filled with prefabricated stone to form a solid structure with strong permeability building materials, which are used in various emergency preparatory projects such as river protection. To facilitate the junction, coarse wire is embedded in the mesh bag. All wire selection, galvanized amount,lacing wire must comply with ASTM A975-97 standard, ie tensile strength more than 75000psi (515MPa) - ASTM A641/A641M-03.
The mesh is made from high quality steel wire, which is heavily galvanised to provide long term corrosion protection. An additional protective polymeric coating is also applied in more aggressive environments, or where a longer design life is required.
Product Name: Welded Gabion basket
Material: Heavy duty galvanized wire diameter from 3.0mm to 6.0mm
(galfan coated wire available)
Gabion mesh wire: 100 x 50 mm,75mm x 75mm, 50 x 50mm,
100 x 100mm and 3' x 3'
Gabion Box Size: 2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.5 x 0.5m, 2.0 x 0.3 x 0.3m,
1.0 x 1.0 x 1.0m, 1.0 x 1.0 x 0.5m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x 0.5m,
1.2 x 0.6 x 0.6m Required size available
